The SbP methodology is made up of MDD and SDD

  1. MDD: Traditional code generation using DSL, UML and Graph models for language, code and test case generation.
  2. SDD: AI code generation used to fill in challenges in MDD approach.

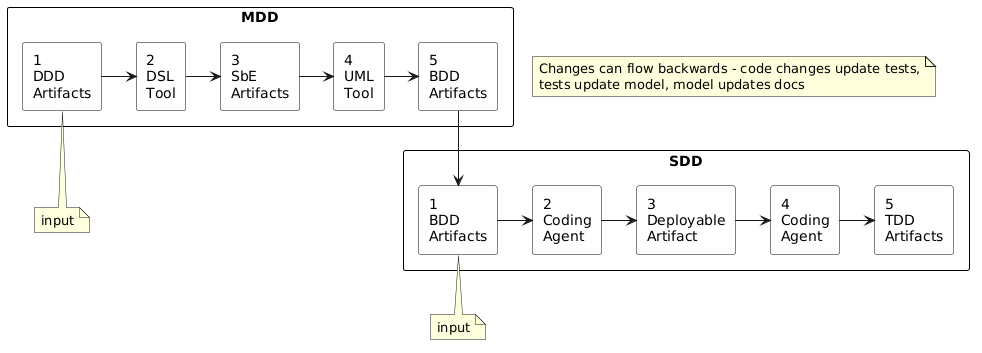

Pipeline Overview

MDD Pipeline

  1. DDD Artifacts - Business domain knowledge
  2. DSL Tool - Xtext Framework defines an editor to write Ubiquitous language specifications. DDD provides concepts like bounded contexts, aggregates, and ubiquitous language.
    • Language grammar: sheep-dog-main/sheep-dog-local/sheepdogxtextplugin.parent/sheepdogxtextplugin/src/org/farhan/dsl/sheepdog/SheepDog.xtext
  3. SbE Artifacts - Markup files describing the software behavior. Currently AsciiDoctor files.
    • Domain examples: sheep-dog-main/sheep-dog-qa/sheep-dog-specs/src/test/resources/asciidoc/specs/*.asciidoc
    • Domain objects: sheep-dog-main/sheep-dog-qa/sheep-dog-specs/src/test/resources/asciidoc/stepdefs/*.asciidoc
  4. UML Tool - This is the red cycle in red-green-refactor. The test automation is created without AI and Claude isn’t allowed to modify it.
    • UML transformation code: sheep-dog-main/sheep-dog-local/sheep-dog-dev/src/main/java/org/farhan/mbt/*.java
    • UML single source of truth: sheep-dog-main/sheep-dog-local/sheep-dog-dev/target/uml/*.uml*
  5. BDD Artifacts - Sets of related tests are created with just one failing one and other similar passing ones.
    • Feature files: sheep-dog-main/sheep-dog-local/sheep-dog-test/src-gen/test/resources/cucumber/specs/*.feature
    • Step definitions: sheep-dog-main/sheep-dog-local/sheep-dog-test/src-gen/test/java/org/farhan/stepdefs/*.java
    • Dependency injection interfaces: sheep-dog-main/sheep-dog-local/sheep-dog-test/src-gen/test/java/org/farhan/objects/
    • Jacoco test reports: sheep-dog-main/sheep-dog-local/sheep-dog-test/target/site/jacoco-with-tests/

SDD Pipeline

  1. BDD Artifacts - Guice or Spring related classes created by Claude to connect test interfaces to main code.
    • Test code: sheep-dog-main/sheep-dog-local/sheep-dog-test/src/test/java/
  2. Coding Agent - This is the green cycle. Claude attempts to make tests pass using guidance from Markdown files and similar passing tests.
    • General project patterns and examples: sheep-dog-main/site/
    • Project specific UML patterns: sheep-dog-main/sheep-dog-local/sheep-dog-test/site/
    • Main code: sheep-dog-main/sheep-dog-local/sheep-dog-test/src/main/java/
  3. Deployable Artifact - Springboot service, Java Library, Eclipse Plugin, VS Code Extension
  4. Coding Agent - This is the refactor cycle. Claude does a code review and updates the green cycle code.
    • SbP framework guidance: sheep-dog-main/site/arch/arch-*.md
  5. TDD Artifacts - JUnit tests are created by Claude to cover retrying on failure etc. This isn’t implemented yet fully because it’ll sometimes make a test that passes instead of fixing the code :(
    • Unit tests for technical failures: sheep-dog-main/sheep-dog-local/sheep-dog-test/src/test/java/org/farhan/runners/surefire
